Multi Measuring Instruments Co.

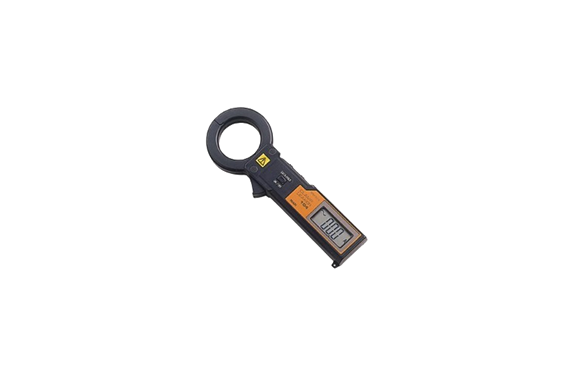

Multi M-104 Mini Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-104
Features
Low-cost type leakage current meter
CT window diameter φ33mm expands usability MAX150A
*Not suitable for measuring small leakage current in three phases at once
Specifications
| Measuring range | AC 200mA/150A |
|---|---|
| AC current accuracy | ±2.0％rdg±5dgt |
| CT Inner Diameter | φ33mm |
| Minimum resolution | 0.1mA |
| Other features | Data Hold |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W54×H155×D20mm Approx. 85g |
| accessory | Batteries, soft cases |
