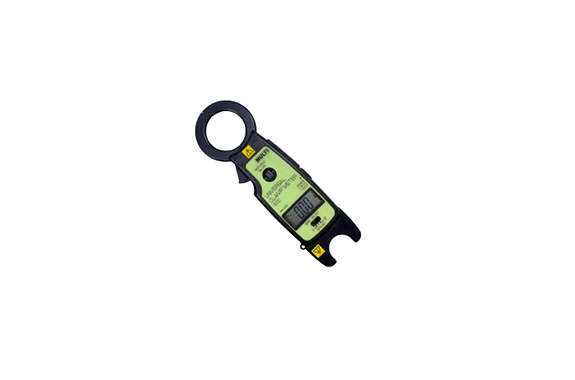

Multi M-200 Universal Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-200
Features
- ’94 Electric Equipment Industry Exhibition
- Small and Medium Enterprise Agency Commissioner’s Award
- First contact clamp meter
Specifications
| Measuring range | clamp CT AC 20A/200A contact type CT AC 200A |
|---|---|
| AC current accuracy | Clamp CT ±1.2% rdg±5dgt Contact CT 1 & 2 Lines ±5%, 3 Lines Approximate Value |
| CT Inner Diameter | Clamp CT φ33mm Contact type CT φ20mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W54×H170×D21mm approx. 100g |
| accessory | Batteries, soft cases |
