Multi Measuring Instruments Co.

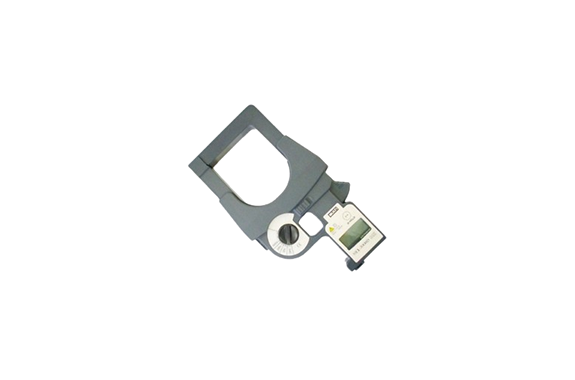

Multi MCL-3000D Large Diameter Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-3000D
Features
・The world’s largest clamp meter with a CT inner diameter of 108×128mm
・Effective value measurement
Specifications
| Measuring range | AC30A/300A/3000A |
|---|---|
| AC current accuracy | 30A/300A range: ±1.5%rdg±8dgt 3000A range: ±2.0%rdg±8dgt |
| CT Inner Diameter | 108×128mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off, Effective Value Measurement (RMS) |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W194×H341.5×D52mm Approx. 1850g |
| accessory | Batteries, carrying cases, belts |
