Multi Measuring Instruments Co.

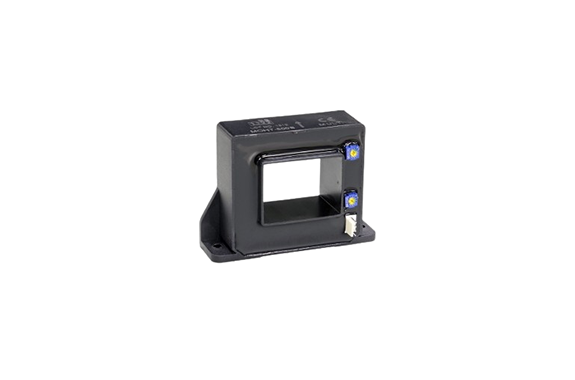

Multi MOHT-500B Open Loop throughDC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd
Model: MOHT-500B Open Loop
Features
●Hall effect measurement: for DC/AC/pulse current
●Application: UPS, battery, switching power supply, DC motor driver, etc.
●Features: Wide range measurement (8 models), low power consumption
Specifications
| Rated primary current | 500A |
|---|---|
| Measuring range | ±1500A |
| accuracy | ± 1% or less of rated primary current (at 25°C) |
| Output Voltage | ±4V F.S |
| Supply voltage | ±15V（±5%） |
| Operating temperature range | -40～+105℃ |
| Storage temperature range | -40～+105℃ |
| Reference Standards | EN50178,IEC61010-1,RoHS |
| Dimensions and weight | W90×H65×D42mm Approx. 300g |
