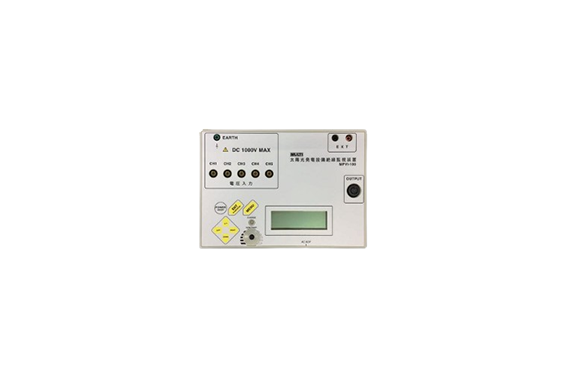

Multi MPVI-100 Solar Power Generation Equipment Insulation Monitoring Equipment
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MPVI-100
Features
・Up to 5 circuits are regularly measured and an alarm is output when the set value is below
the set value ・The alarm setting value can be selected from 0.1/0.2/0.4/1.0 MΩ
・If the insulation resistance value is 10 MΩ or less, it is automatically recorded in the internal memory
・In the event of a ground fault, it can determine whether the ground fault occurred on the AC side or the DC side (patented, Transformer power conditioner only)
・(Ichisai) Chubu Electric Safety Association jointly developed product
Specifications
| Number of Measurement Circuits | 1~5 circuits |
|---|---|
| Viewing range | 0.01MΩ～10MΩ |
| accuracy | ±5.0%rdg |
| Insulation resistance setpoint | Choose from 0.1/0.2/0.4/1.0MΩ (common to CH1~5) |
| Measurement time setting | 30/60/180 seconds |
| Alarm output | Relay contact output |
| Recording Capacity | 256 Data |
| Operating Circuit Voltage | DC40V~1000V Solar Power Circuit |
| power | AC Adapter |
| Dimensions and Mass | W236×H170×D54mm |
| accessory | AC Adapter ×1 Voltage Intake Cord ×5 Sets Ground Wire ×1 Carrying Case × 1 |
