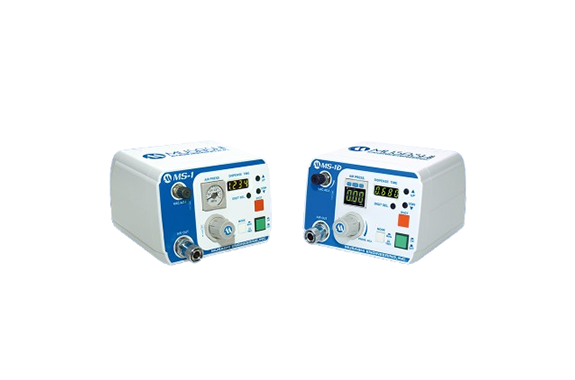

Musashi MS-1/1D High-Performance Eco-Dispenser
Manufacturer: Musashi Engineering, Inc.
Model: MS-1/1D
Features
・Power consumption cut in half!!
・Discharge accuracy 130% higher than conventional models.
・Equipped with a discharge condition setup function!
・Low cost.
・Ultra-lightweight and compact.
・Wide-range dispense timer.
・Discharge pressure digital display type lineup (SMART SHOT MS-1D).
・Hand switch compatible (optional).
・RoHS and CE compliant.
Specifications
| High-performance eco-dispenser MS-1/1D | ||
|---|---|---|
| Model | MS-1-CTR | MS-1D-CTR |
| Discharge pressure setting range | 20 to 700 [kPa] | |
| Discharge pressure display | Analog Display | Digital display (display resolution: 0.01MPa) |
| Discharge time setting | 0.01 to 9999s (digits can be switched using the extended operation) | |
| Vacuum pressure setting range | 0 to -20 [kPa] (supply air pressure 600 [kPa]) | |
| Key Features | Timed/Manual mode switch, stopwatch | |
