Musashi Engineering

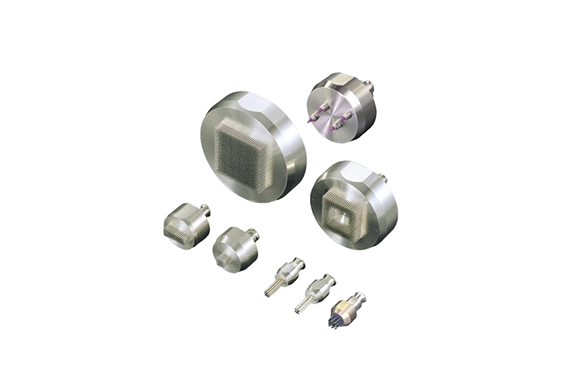

Musashi Multi-Nozzle
Manufacturer: Musashi Engineering, Inc.
Features
・Multiple points can be dispensed simultaneously with one discharge.
・Custom orders are available to accommodate various dispensing patterns.
・Sharp needle specifications are available to prevent creeping up onto the needle tip.
Specifications
| Model | Size (A) mm | Size (B) mm |
|---|---|---|
| MN-10 | 10 | 15 |
| MN-13 | 13 | 19 |
| MN-15 | 15 | 22 |
| MN-17 | 17 | 22 |
| MN-19 | 19 | 22 |
| MN-21 | 21 | 22 |
| MN-23 | 23 | 25 |
| MN-25 | 25 | 25 |
| MN-27 | 27 | 25 |
| Gauge | Inner Diameter (mm) | Outer Diameter (mm) |
|---|---|---|
| 12 | 2.30 | 2.99 |
| 13 | 1.80 | 2.42 |
| 14 | 1.58 | 2.01 |
| 15 | 1.37 | 1.82 |
| 16 | 1.19 | 1.67 |
| 17 | 1.04 | 1.56 |
| 18 | 0.86 | 1.22 |
| 19 | 0.68 | 1.00 |
| 20 | 0.58 | 0.91 |
| 21 | 0.49 | 0.83 |
| 22 | 0.39 | 0.72 |
| 23 | 0.32 | 0.63 |
| 24 | 0.29 | 0.57 |
| 25 | 0.26 | 0.50 |
| 26 | 0.24 | 0.46 |
| 27 | 0.20 | 0.41 |
| 28 | 0.15 | 0.35 |
