Musashi Engineering

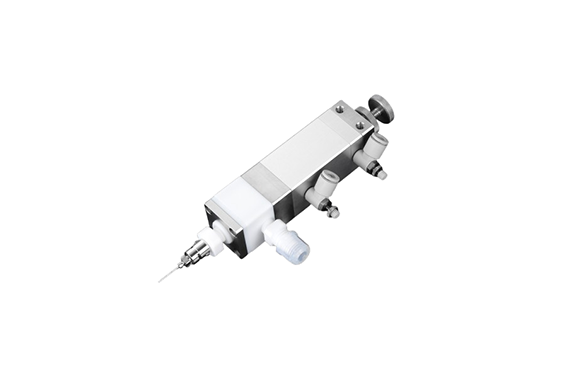

Musashi NCV-7DV Needle Control Valve
Manufacturer: Musashi Engineering, Inc.
Model: NCV- 7DV
Features
・The liquid contact parts are made of fluororesin, making it ideal for constant dispensing of anaerobic liquid materials.
・A needle control valve that can also dispense constant amounts of liquid materials containing fillers.
Specifications
| Name | Needle control valve NCV-7DV |
|---|---|
| Model | NCV-7DV-2P |
| Applicable Viscosity | ~10 Pa・s |
| Operating air supply pressure range | 0.3 to 0.4 MPa |
| Maximum liquid material supply pressure | 0.5 MPa |
| Liquid material supply port | φ6×φ4 liquid transfer joint |
| Applicable liquid materials | Anaerobic materials, filled materials |
