Japan, NAGAHORI INDUSTRY, Quick Couplings

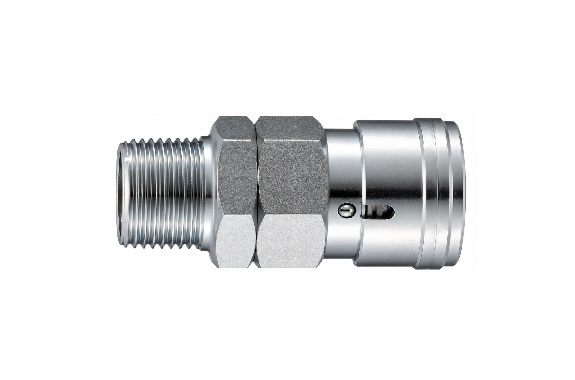

Nagahori CAL Type 40 Steel (Chrome-Plated) Ball-lock Type SML (Male Thread)
Made in Japan
Manufacturer : NAGAHORI INDUSTRY CO., LTD.
Model : CAL44SML, CAL46SML, CAL48SML
Feature
- Ball lock mechanism prevents unexpected disconnection of socket and plug during normal use.
- Can be connected to AL series plugs.
- The specification is the same as AL type’s.
Specifications
Model | Connection Type (T) | Dimensions(mm) | Weight (g) | ||||
|---|---|---|---|---|---|---|---|
L | fD | S | C | fB | |||
CAL44SML | R1/2″ | 64 | 36.5 | 29 | 33.5 | 13 | 224 |
CAL46SML | R3/4″ | 66 | 36.5 | 32 | 36.5 | 16 | 248 |
CAL48SML | R1″ | 70 | 36.5 | 36 | 41 | 22 | 290 |
