Nagase RooTAC (TOTAKU)

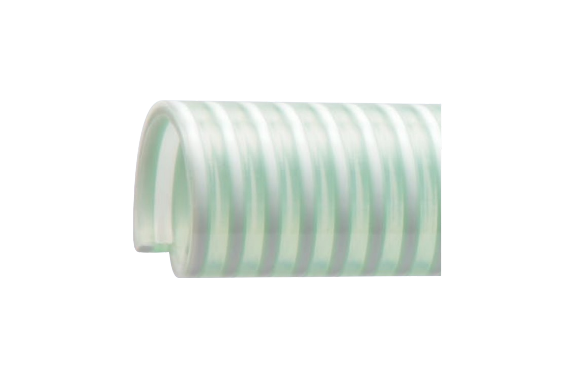

Nagase RooTac TOTAKU FLUORO-C
Manufacturer: Nagase RooTAC Industries, Inc.
Model: FLUORO-C
Feature
- Outstanding resistance to chemicals due to the low reactivity of PTFE resin.
- Fluids have low adhesion to the surface, which provides excellent water-repellent properties for effortless cleaning.
- Designed for safe and easy connections.
- Low leaching minimizes liquid alteration, making it ideal for transporting chemicals.
- Lightweight, constructed entirely from resin.

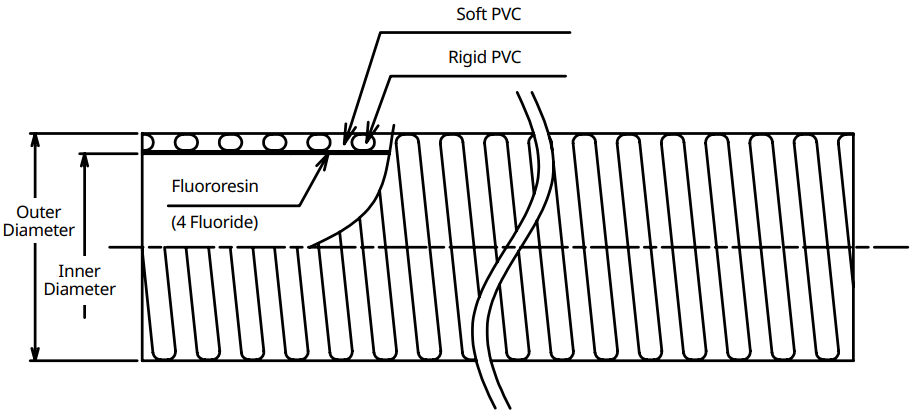

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | lbs/ft | g/m | psi | MPa | inch | mm |
| 1 | 25 | 1.00 | 25.4 | 1.27 | 32.2 | 0.28 (0.29)* | 420 (430)* | 72.52 | 0.50 | 9.45 | 240 |
| 1.5 | 38 | 1.50 | 38.0 | 1.82 | 46.2 | 0.50 (0.51)* | 740 (755)* | 58.02 | 0.40 | 13.78 | 350 |
