Nagase RooTAC (TOTAKU)

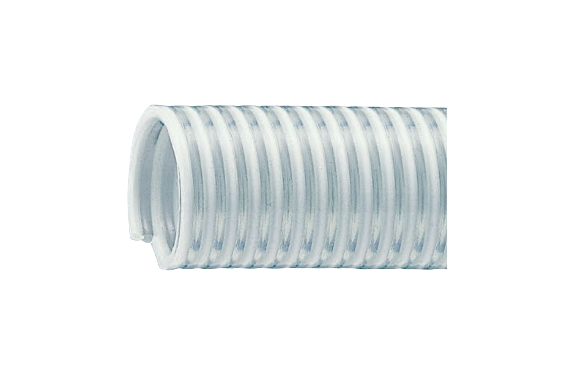

Nagase RooTac TOTAKU Food-Grade Hoses SD-F
Manufacturer: Nagase RooTAC Industries, Inc.
Model: SD-F
Feature
- Tasteless and odorless, making it ideal for food transportation.
- Suitable for use with oils and fatty foods.
- Complies with the Standards for Food and Additives.

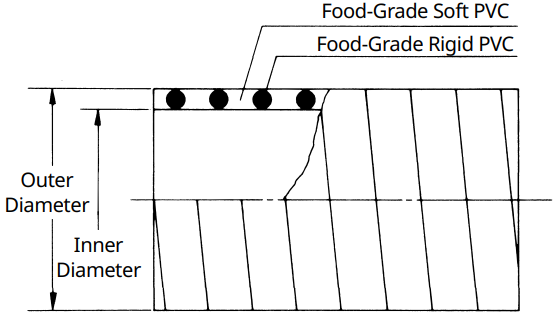

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | lbs/ft | g/m | feet | m | psi | MPa | inch | mm |
| 1 | 25 | 1.00 | 25.4 | 1.23 | 31.2 | 0.23 | 340 | 164 | 50 | 72.52 | 0.50 | 9.45 | 240 |
| 1.25 | 32 | 1.26 | 32.0 | 1.54 | 39.2 | 0.34 | 510 | 164 | 50 | 65.27 | 0.45 | 13.39 | 340 |
| 1.5 | 38 | 1.50 | 38.0 | 1.81 | 46.0 | 0.44 | 650 | 164 | 50 | 58.02 | 0.40 | 13.78 | 350 |
| 2 | 50 | 2.00 | 50.8 | 2.40 | 61.0 | 0.75 | 1120 | 164 | 50 | 58.02 | 0.40 | 19.69 | 500 |
| 2.5 | 65 | 2.50 | 63.5 | 2.94 | 74.8 | 1.02 | 1525 | 65/164 | 20/50 | 58.02 | 0.40 | 23.62 | 600 |
| 3 | 75 | 3.00 | 76.2 | 3.46 | 88.0 | 1.27 | 1885 | 65/164 | 20/50 | 58.02 | 0.40 | 30.51 | 775 |
| 3.5* | 90 | 3.50 | 88.9 | 3.96 | 100.5 | 1.47 | 2190 | 65 | 20 | 43.51 | 0.30 | 41.93 | 1065 |
| 4 | 100 | 4.00 | 101.6 | 4.56 | 115.8 | 2.07 | 3080 | 65 | 20 | 43.51 | 0.30 | 45.28 | 1150 |
| 5* | 125 | 5.00 | 127.0 | 5.55 | 141.0 | 2.46 | 3660 | 65 | 20 | 36.26 | 0.25 | 62.99 | 1600 |
| 6* | 150 | 6.00 | 152.4 | 6.61 | 167.8 | 3.36 | 5000 | 65 | 20 | 29.01 | 0.20 | 74.80 | 1900 |
