Nagase RooTAC (TOTAKU)

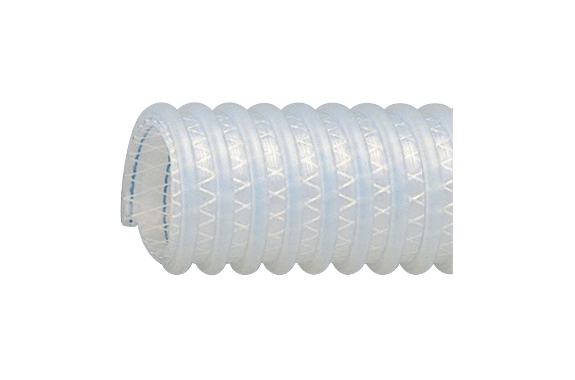

Nagase RooTac TOTAKU Non-PVC Hose ECO Line-Ho
Manufacturer: Nagase RooTAC Industries, Inc.
Model: Eco Line-Ho
Feature
- Suitable for transporting oils, fatty foods, and general food products.
- Can be cleaned with hot water¹ and 95% ethanol, ensuring hygienic use.
- Safe for incineration after use without emitting harmful gases².
- Semi-transparent construction allows for easy inspection of transported materials.
- It is equipped with a reinforcement fiber, providing an allowable pressure of 72.5 psi (0.50 MPa).

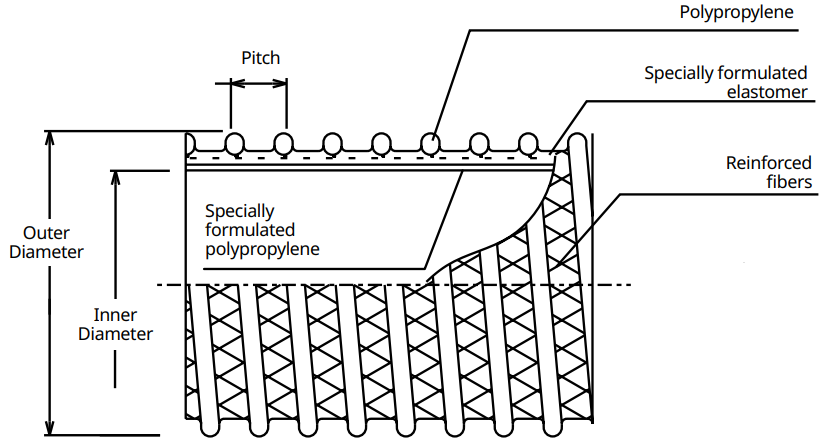

Standard Dimensions and Properties
| Nominal Diameter | Inner Diameter | Outer Diameter | Pitch | Reference Weight | Length | Allowable Pressure (at room temperature) | Allowable Bend Radius (to the center axis of the hose) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | mm | lbs/ft | g/m | feet | m | psi | MPa | inch | mm |
| 1 | 25 | 1.00 | 25.4 | 1.47 | 37.4 | 0.31 | 7.8 | 0.24 | 360 | 164 | 50 | 72.52 | 0.50 | 4.72 | 120 |
| 1.25 | 32 | 1.26 | 32.0 | 1.73 | 44.0 | 0.35 | 9.0 | 0.31 | 455 | 164 | 50 | 72.52 | 0.50 | 5.91 | 150 |
| 1.5 | 38 | 1.50 | 38.0 | 2.01 | 51.0 | 0.39 | 10.0 | 0.39 | 580 | 164 | 50 | 72.52 | 0.50 | 9.45 | 240 |
| 2 | 50 | 2.00 | 50.8 | 2.55 | 64.8 | 0.41 | 10.5 | 0.55 | 820 | 164 | 50 | 72.52 | 0.50 | 11.81 | 300 |
