Nansin Co., Ltd.
Nansin STC-150 CBC S-15 Caster
Manufacturer: Nansin Co., Ltd.:
Model: STC-150 CBC S-15

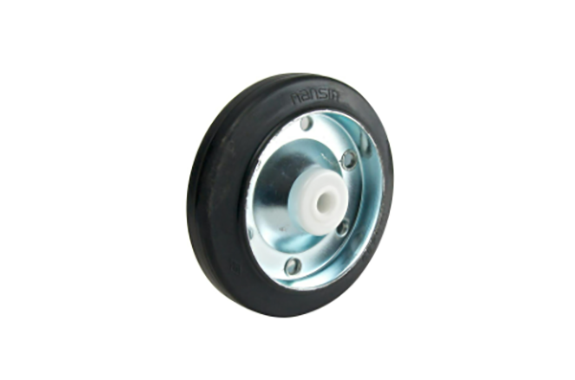

Illustration
| Product Name | STC-150 CBC S-15 |
|---|---|
| Wheel Type | Rubber (with B) |
| Stopper Type | S-15 |
| Wheel Diameter D (mm) | 150 |
| Allowable Load (daN) | 160 |
| Starting Force (daN) | 9.6 |
| Turning Starting Force (daN) | 64.8 |
| Wheel Width W (mm) | 40 |
| Mounting Height H (mm) | 190 |
| Mounting Pitch A × B (A’ × B’) (mm) | 80 × 80 (75 × 75) |
| Plate Size X × Y (mm) | 102 × 102 |
| Mounting Hole Diameter P (mm) | 11 |
| Eccentricity E (mm) | 40 |
| Turning Radius R (mm) | (R119) |
