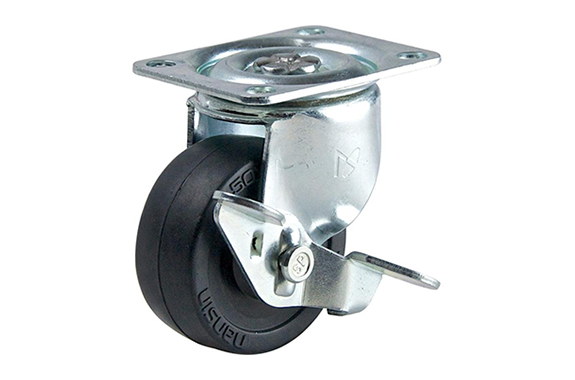

Nansin STC-50 EM S-1 Caster
Manufacturer: Nansin Co., Ltd.:
Model: STC-50 EM S-1
Model: STC-50 EM S-1
Features
| Feature | Specification |
| Product Name | STC-50 EM S-1 |

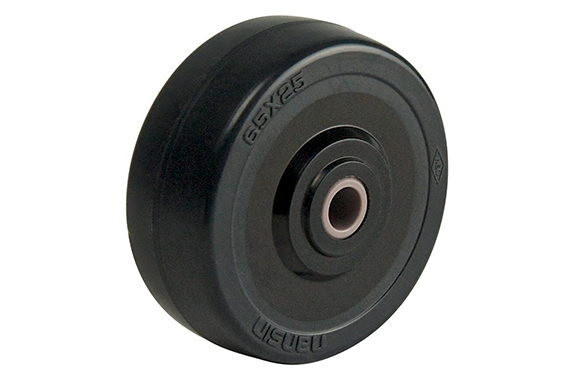

| Wheel type | Rubber |
| Stopper type | S-1 |
| Wheel diameter (D) | 50 mm |
| Permissible load | 50 daN |
| Starting force | 10.5 daN |
| Turning starting force | 24.75 daN |
| Wheel width (W) | 21 mm |
| Mounting height (H) | 65 mm |
| Mounting pitch (A×B) | 46 × 35 mm |
| Plate size (X×Y) | 59 × 47 mm |
| Mounting hole diameter (P) | 6.5 mm |
| Eccentricity (E) | 16 mm |
| Turning radius (R) | 58 mm |
