Nansin Co., Ltd.

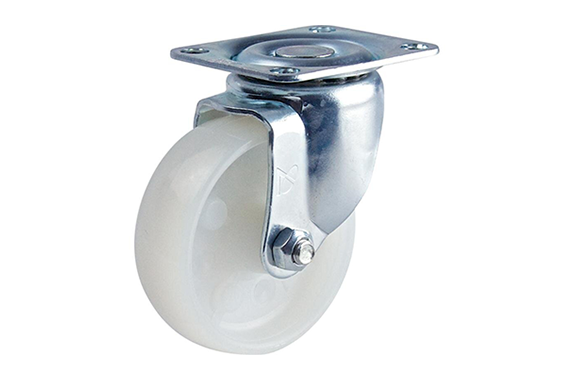

Nansin STC-50NM Caster
Manufacturer: Nansin Co., Ltd.:
Model: STC-50NM
Model: STC-50NM
Features
| Feature | Specification |
| Product Name | STC-50NM |

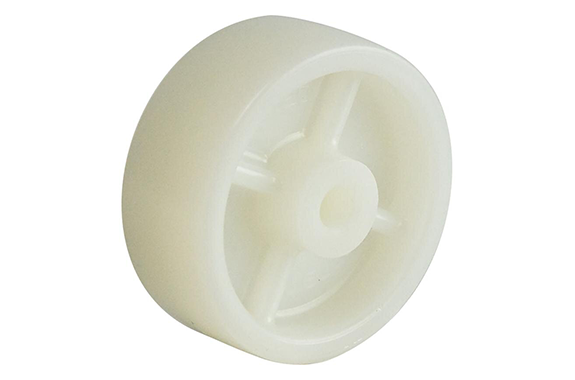

| Wheel type | Nylon/white |
| Wheel diameter (D) | 50 mm |
| Permissible load | 60 daN |
| Starting force | 6.3 daN |
| Turning starting force | 14.4 daN |
| Wheel width (W) | 20 mm |
| Mounting height (H) | 65 mm |
| Mounting pitch (A×B) | 46 × 35 mm |
| Plate size (X×Y) | 59 × 47 mm |
| Mounting hole diameter (P) | 6.5 mm |
| Eccentricity (E) | 16 mm |
| Turning radius (R) | 44 mm |
