NIC AUTOTEC

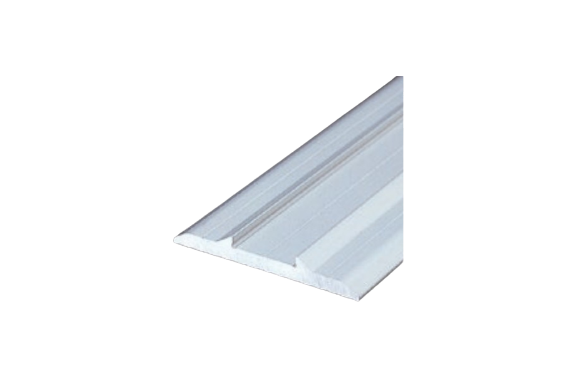

NIC Autotec AFF-3090 Bracket Frame
Manufacturer: NIC Autotec, Inc.
Model: AFF-3090

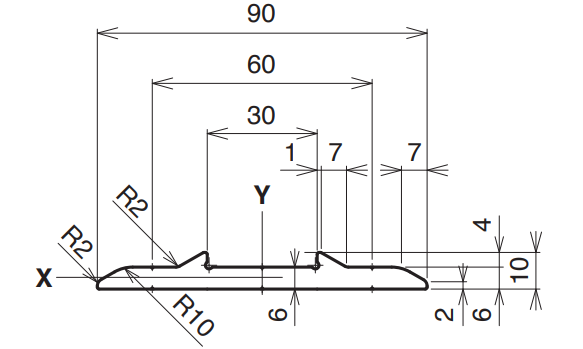

Dimensions
Specifications
| Stock Length | Page length * 1 | Material | Tensile Fitness |
|---|---|---|---|
| 6,000 mm | 15–3,000 mm | A6005CS-T5 (A6N01S-T5) | 245 N/mm² |
| Cross-sectional Area | Mass | Second Moment of Area | |
| 543.6 mm² | 1.468 kg/m | Ix 0.22 × 10⁴ mm⁴ Iy 32.1 × 10⁴ mm⁴ | |
