NIC AUTOTEC

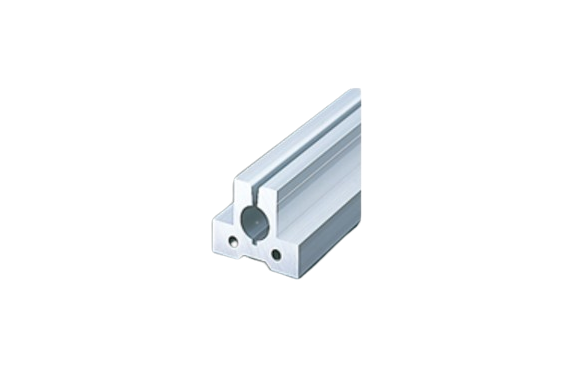

NIC Autotec AFG-4860 Special Frame
Manufacturer: NIC Autotec, Inc.
Model: AFG-4860
Specification
| Stock dimensions | 6000 mm |
|---|---|
| Sales dimensions | 15–4000 mm |
| cutting tolerance | ±0.3 mm (≤2 m) |
| Material | A6063S–T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating* |
| Tensile strength | 185 N/mm² |
| cross-sectional area | 316.6 mm² |
| mass | 0.855 kg/m |
| Second moment of area | Ix 3.74 × 10⁴ mm⁴ Iy 4.56 × 10⁴ mm⁴ |
| Compatible end caps | ECPR-3542-6, ECPR-3542-6-GY |

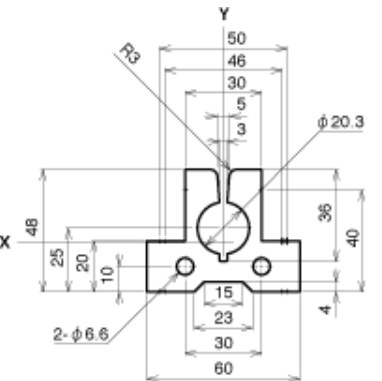

Dimension
