NIC AUTOTEC

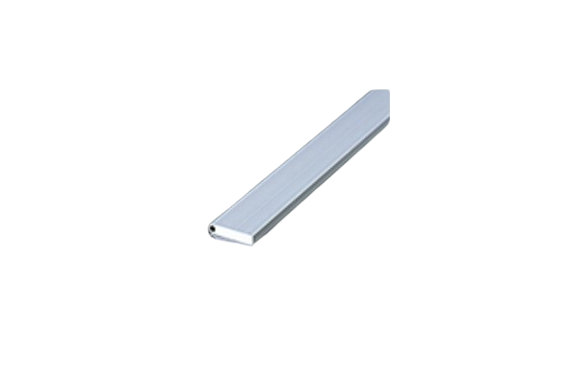

NIC Autotec AFH-0525 Special Frame
Manufacturer: NIC Autotec, Inc.
Model: AFH-0525
Specification
| Stock dimensions | 5000mm |
|---|---|
| Sales dimensions | 15–2000mm |
| cutting tolerance | ±0.3mm (≤2m) |
| Material | A6063S–T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating * |
| Tensile strength | 185 N/mm² |
| cross-sectional area | 115.1mm² |
| mass | 0.311 kg/m |
| Second moment of area | Ix 0.025 × 10⁴ mm⁴ Iy 0.53 × 10⁴ mm⁴ |

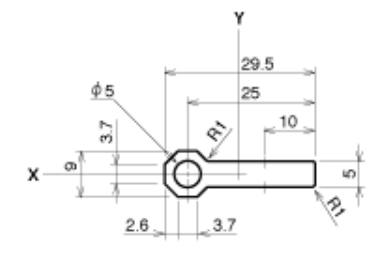

Dimension
