NIC AUTOTEC

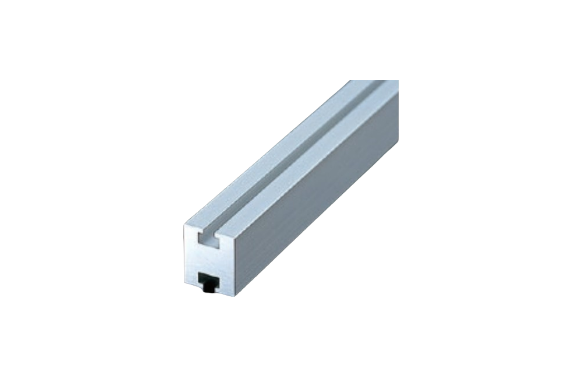

NIC Autotec AFM-2020-4 Bracket Frame
Manufacturer: NIC Autotec, Inc.
Model: AFM-2020-4

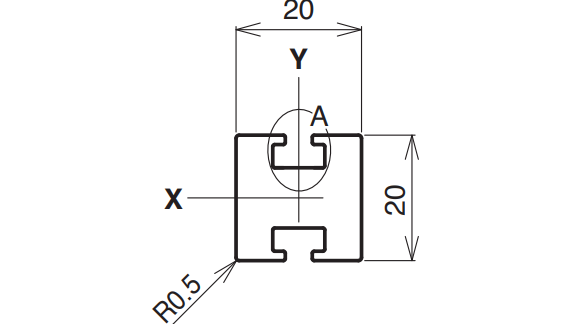

Dimensions
Specifications
| Stock Length | Page length * 1 | Material | Tensile Fitness |
|---|---|---|---|
| 6,000 mm | 15–3,000 mm | A6005CS-T5 (A6N01S-T5) | 225 N/mm² |
| Cross-sectional Area | Mass | Second Moment of Area | |
| 325.5 mm² | 0.879 kg/m | Ix 0.94 × 10⁴ mm⁴ Iy 1.29 × 10⁴ mm⁴ | |
