NIC AUTOTEC

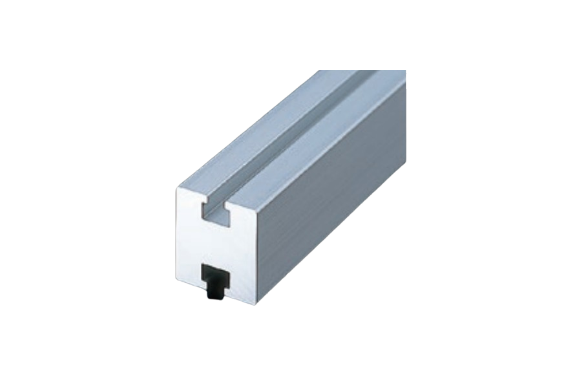

NIC Autotec AFM-3030-6 Bracket Frame
Manufacturer: NIC Autotec, Inc.
Model: AFM-3030-6

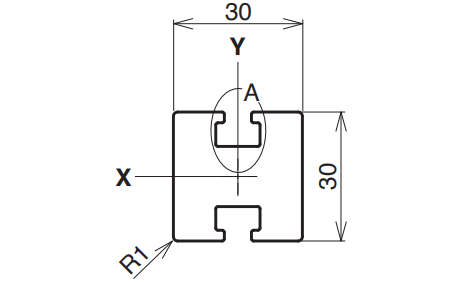

Dimensions
Specifications
| Stock Length | Page length * 1 | Material | Tensile Fitness |
|---|---|---|---|
| 6,000 mm | 15–3,000 mm | A6005CS-T5 (A6N01S-T5) | 225 N/mm² |
| Cross-sectional Area | Mass | Second Moment of Area | |
| 754.3 mm² | 2.037 kg/m | Ix 5.03 × 10⁴ mm⁴ Iy 6.62 × 10⁴ mm⁴ | |
