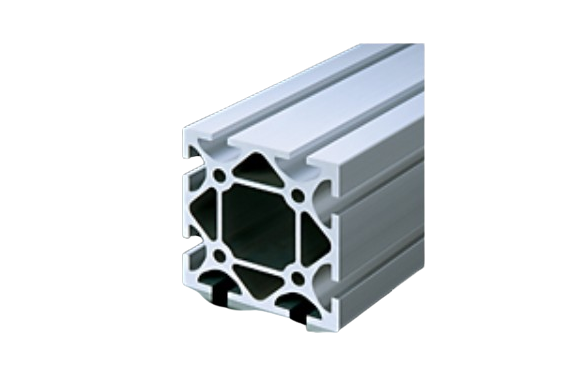

Nic Autotec AFS-100100H-10 High Rigidity Series
Manufacturer: NIC Autotec, Inc.
Model: AFS-100100H-10
Specifications
| Stock dimensions | Sales dimensions | Cutting tolerance | Material | Surface treatment | Tensile strength | Cross-sectional area | Mass | Second moment of area |
|---|---|---|---|---|---|---|---|---|
| 6000mm | 15-3000mm | ±0.3mm (≤2m) | A6N01S-T5 | Anodized (5 μm+) with clear electrodeposition | 245 N/mm² | 4020.2mm² | 10.855 kg/m | Ix: 109.4×10⁴ mm⁴ / Iy: 1505×10⁴ mm⁴ |
