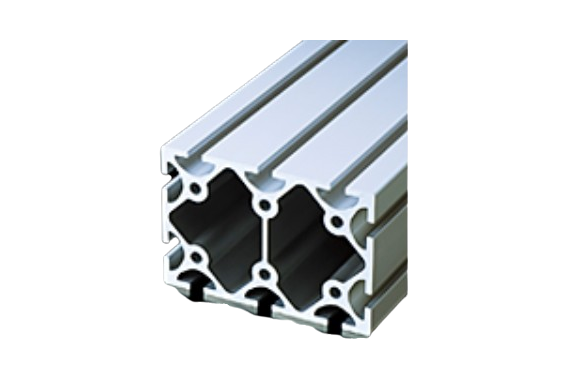

Nic Autotec AFS-100150H-10 High Rigidity Series
Manufacturer: NIC Autotec, Inc.
Model: AFS-100150H-1
Specifications
| Stock dimensions | Sales dimensions | Material | Tensile strength | Cross-sectional area | Mass | Second moment of area | Compatible end caps |
|---|---|---|---|---|---|---|---|
| 4000mm | 15-4000mm | A6N01S-T5 | 245 N/mm² | 3615.6mm² | 9.762 kg/m | Ix: 386.9×10⁴ / Iy: 386.9×10⁴ mm⁴ | ECP-100100-10(-GY) |
