NIC Autotec AFS-1020-4 / AFS-1040-4 / AFS-1060-4 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-1020-4 / AFS-1040-4 / AFS-1060-4
Dimensions

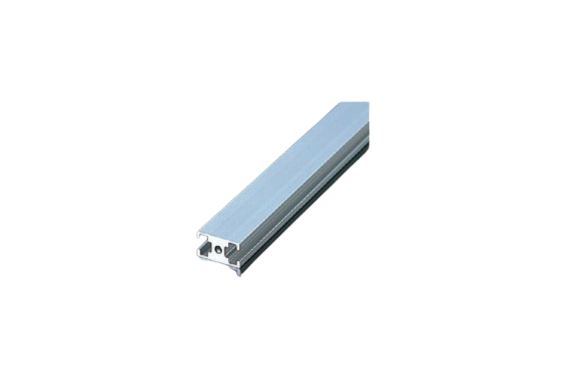

■ AFS-1020-4

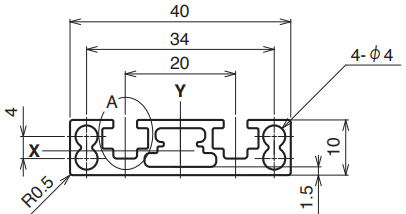

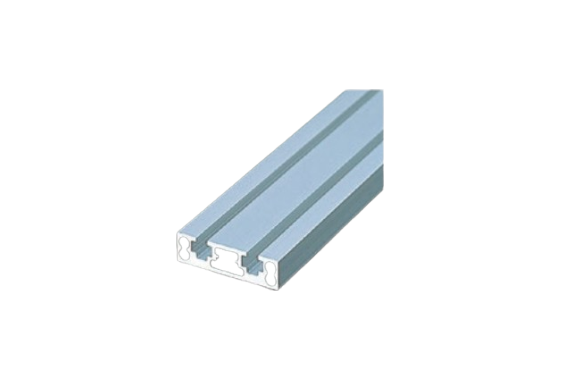

■ AFS-1040-4

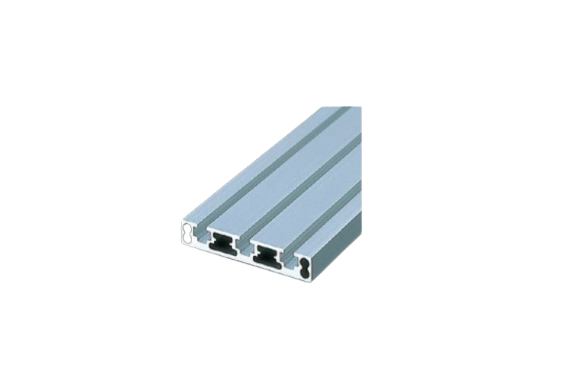

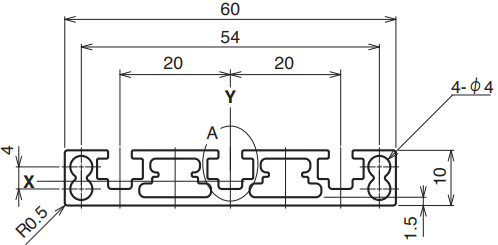

■ AFS-1060-4
Specifications
| Model | Stock Length | Sales Length*1 | Material | Tensile Strength | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|---|
| AFS-1020-4 | 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 101.7 mm² | 0.275 kg/m | Ix 0.13 × 10⁴ mm⁴ Iy 0.25 × 10⁴ mm⁴ |
| AFS-1040-4 | 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 191.2 mm² | 0.516 kg/m | Ix 0.22 × 10⁴ mm⁴ Iy 2.85 × 10⁴ mm⁴ |
| AFS-1060-4 | 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 278.4 mm² | 0.752 kg/m | Ix 0.33 × 10⁴ mm⁴ Iy 9.13 × 10⁴ mm⁴ |
