NIC AUTOTEC

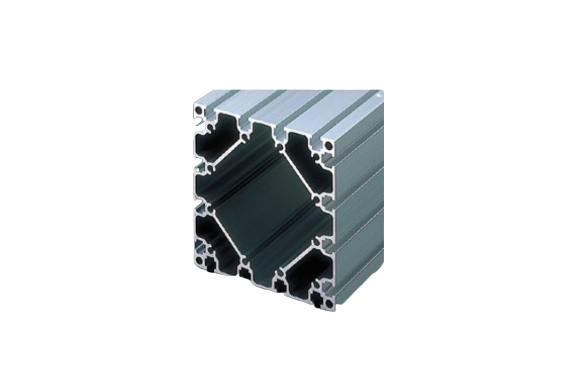

NIC Autotec AFS-120120-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-120120-6

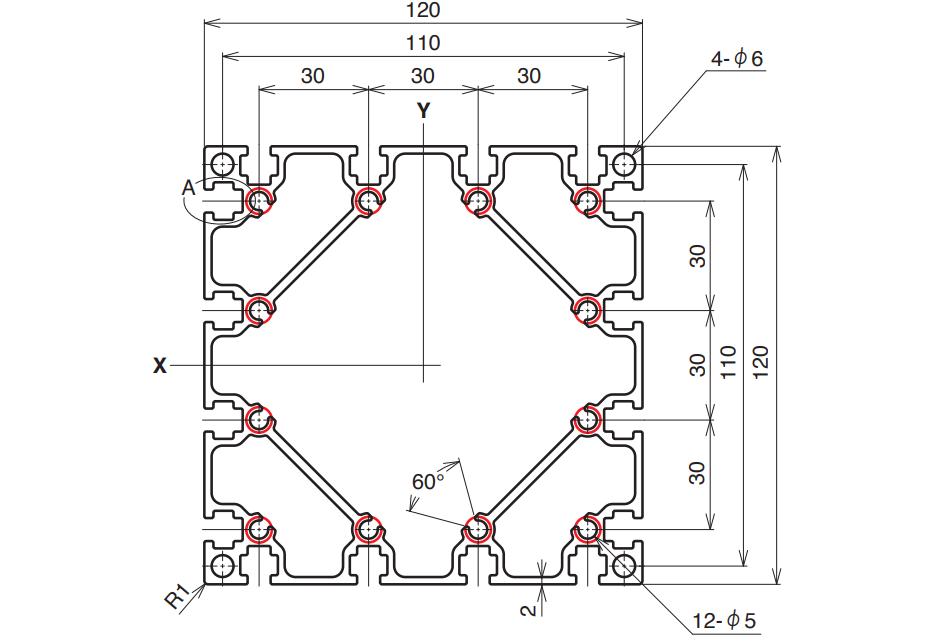

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 185 N/mm² | 2367.4 mm² | 6.392 kg/m | Ix 437.4 × 10⁴ mm⁴ Iy 437.4 × 10⁴ mm⁴ |
