NIC AUTOTEC

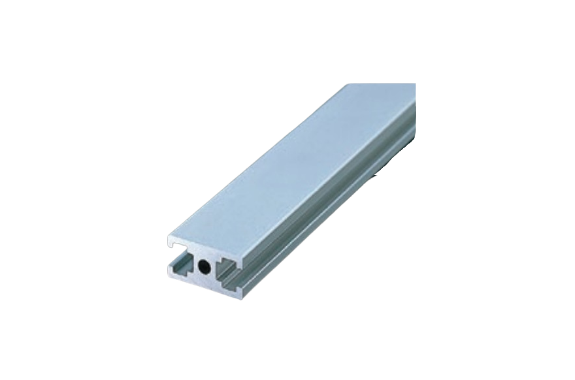

NIC Autotec AFS-1530-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-1530-6

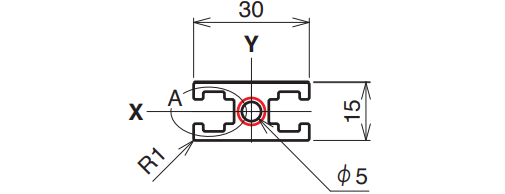

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 253.2 mm² | 0.684 kg/m | Ix 0.72 × 10⁴ mm⁴ Iy 1.54 × 10⁴ mm⁴ |
