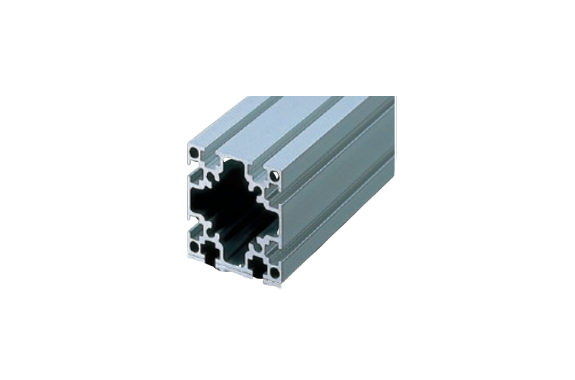

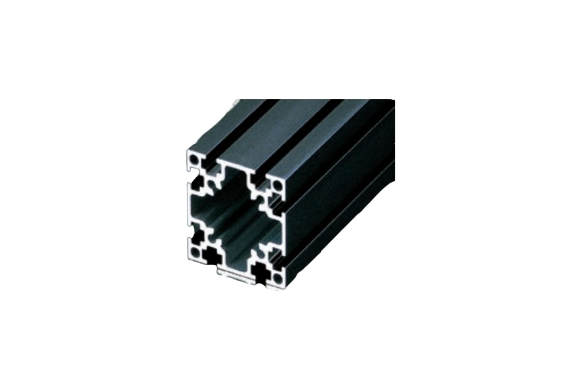

NIC Autotec AFS-4040-4 / AFS-4040-4-BK Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-4040-4 / AFS-4040-4-BK

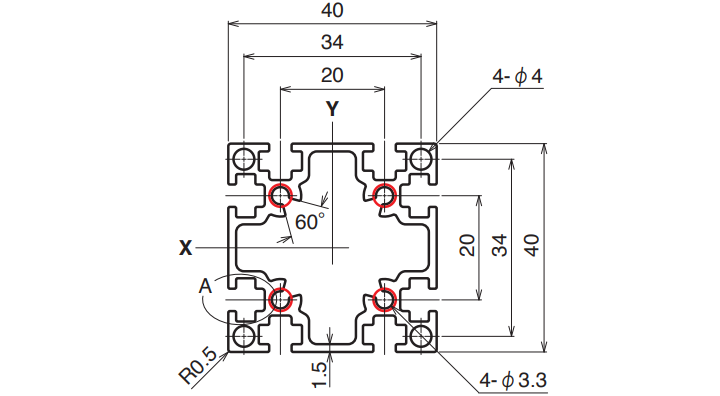

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 225 N/mm² | 439.9 mm² | 1.188 kg/m | Ix 7.99 × 10⁴ mm⁴ Iy 7.99 × 10⁴ mm⁴ |
