NIC AUTOTEC

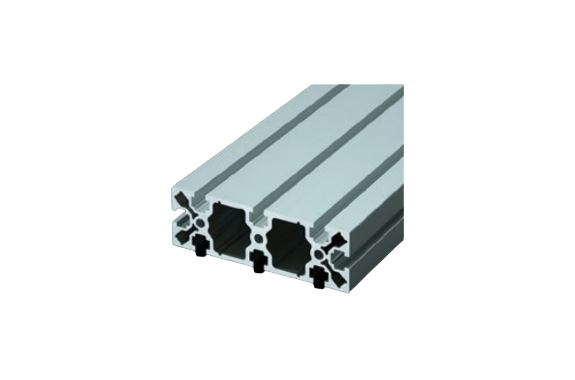

NIC Autotec AFS-45135C-8 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-45135C-8

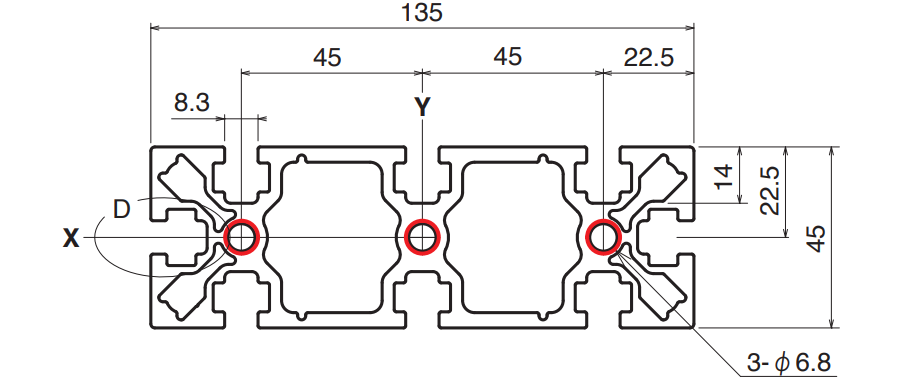

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5(205) | 225 N/mm² | 2108.36 mm² | 5.693 kg/m | Ix 48.7 × 10⁴ mm⁴ Iy 387.3 × 10⁴ mm⁴ |
