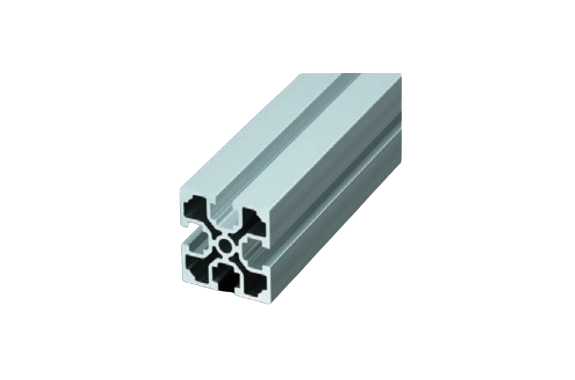

NIC Autotec AFS-4545C-8 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-4545C-8

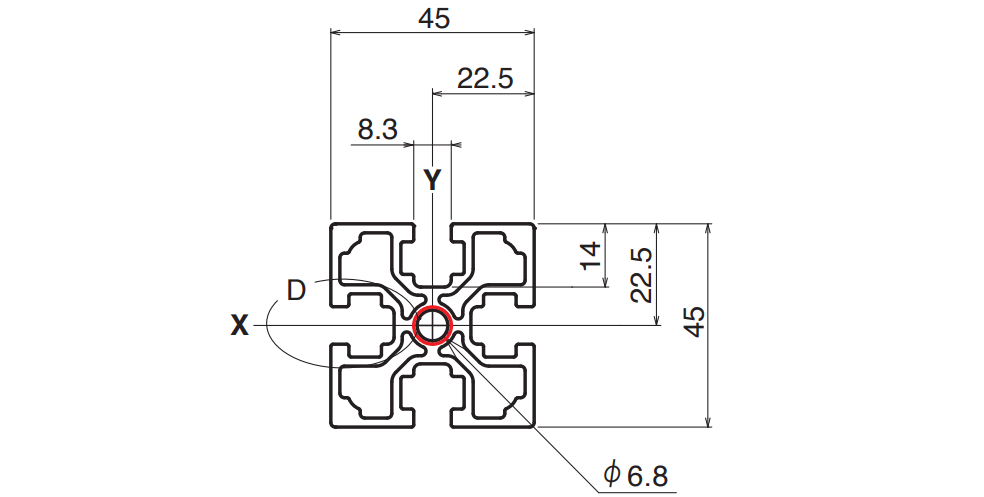

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 225 N/mm² | 760.94 mm² | 2.055 kg/m | Ix 15.5 × 10⁴ mm⁴ Iy 15.5 × 10⁴ mm⁴ |
