NIC AUTOTEC
NIC Autotec AFS-4590B-8 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-4590B-8

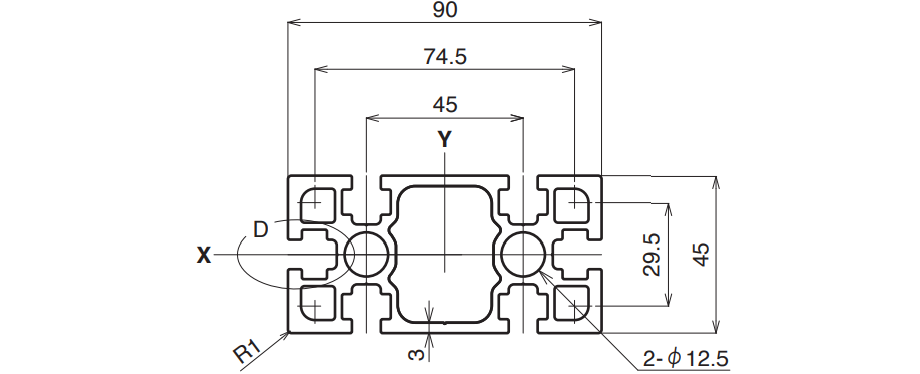

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6005CS-T5 （A6N01S-T5） | 245 N/mm² | 1420.0 mm² | 3.834 kg/m | Ix 32.1 × 10⁴ mm⁴ Iy 127.6 × 10⁴ mm⁴ |
