NIC AUTOTEC

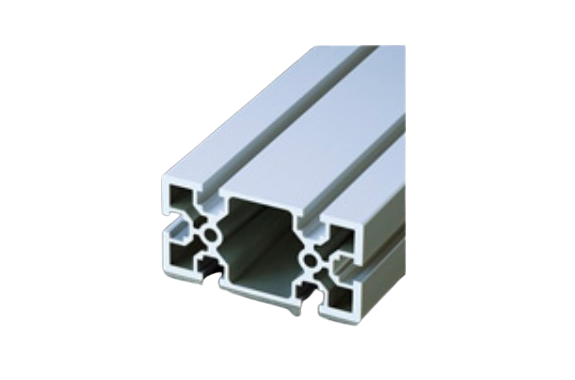

Nic Autotec AFS-50100B-8 High Rigidity Series
Manufacturer: NIC Autotec, Inc.
Model: AFS-50100B-8
Specifications
| Stock dimensions | 6000 mm |
| Sales dimensions | 15–4000 mm |
| Cutting tolerance | ±0.3 mm (≤2 m) |
| Material | A6N01S–T5 |
| Surface treatment | Anodized finish (≥5 μm) with clear electrodeposition coating * |
| Tensile strength | 245 N/mm² |
| Cross-sectional area | 1540.9 mm² |
| Mass | 4.160 kg/m |
| Second moment of area | Ix 43.2 × 10⁴ mm⁴ Iy 178.1 × 10⁴ mm⁴ |
