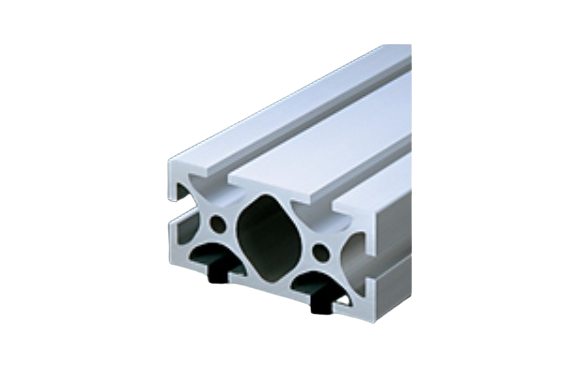

Nic Autotec AFS-50100H-10 High Rigidity Series
Manufacturer: NIC Autotec, Inc.
Model: AFS-50100H-10
Specifications
| Stock dimensions | Sales dimensions | Cutting tolerance | Material | Surface treatment | Tensile strength | Cross-sectional area | Mass | Second moment of area | Compatible end caps |
|---|---|---|---|---|---|---|---|---|---|
| 6000mm | 15–4000mm | ±0.3mm (≤2m) | A6N01S-T5 | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating * | 245 N/mm2 | 2153 mm2 | 5.813 kg/m | Ix 57.2 × 104 mm4 Iy 214.4 × 104 mm4 | ECP-50100-10, ECP-50100-10-GY |
