NIC AUTOTEC

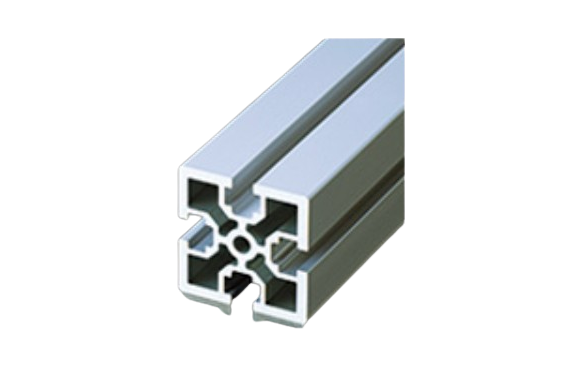

Nic Autotec AFS-5050B-8 High Rigidity Series
Manufacturer: NIC Autotec, Inc.
Model: AFS-5050B-8-T, AFS-5050B-8-W
Specifications
| Stock dimensions | 6000 mm |
| Sales dimensions | 15–4000 mm |
| Cutting tolerance | ±0.3 mm (≤2 m) |
| Material | A6N01S–T5 |
| Surface treatment | Anodized finish (≥5 μm) with clear electrodeposition coating * |
| Tensile strength | 245 N/mm² |
| Cross-sectional area | 1021.41 mm² |
| Mass | 2.758 kg/m |
| Second moment of area | Ix 26.3 × 10⁴ mm⁴ Iy 26.3 × 10⁴ mm⁴ |
