NIC AUTOTEC

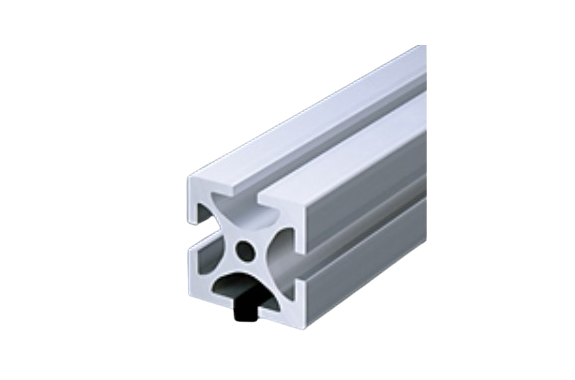

Nic Autotec AFS-5050H-10 High Rigidity Series
Manufacturer: NIC Autotec, Inc.
Model: AFS-5050H-10
Specifications
| Stock dimensions | 6000mm |
| Sales dimensions | 15–4000mm |
| cutting tolerance | ±0.3mm (≤2m) |
| Material | A6N01S-T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating * |
| Tensile strength | 245 N/mm2 |
| cross-sectional area | 1219.38 mm2 |
| mass | 3.292 kg/m |
| Second moment of area | Ix 31.1 × 104 mm4 Iy 31.1 × 104 mm4 |
| Compatible end caps | ECP-5050-10, ECP-5050-10-GY |
