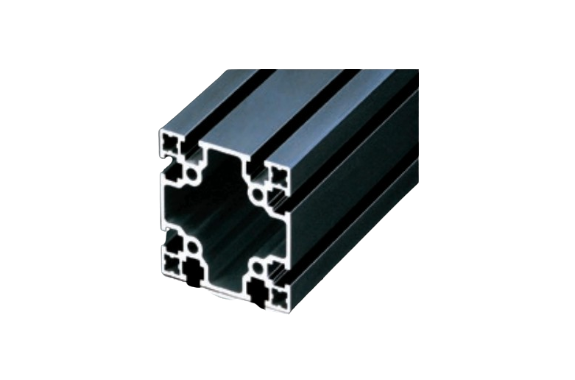

NIC Autotec AFS-6060L-6 / AFS-6060L-6-BK Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-6060L-6 / AFS-6060L-6-BK

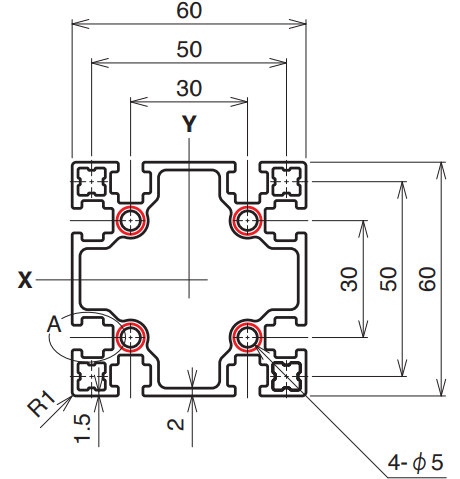

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 225 N/mm² | 892.3 mm² | 2.409 kg/m | Ix 37.3 × 10⁴ mm⁴ Iy 37.3 × 10⁴ mm⁴ |
