NIC AUTOTEC

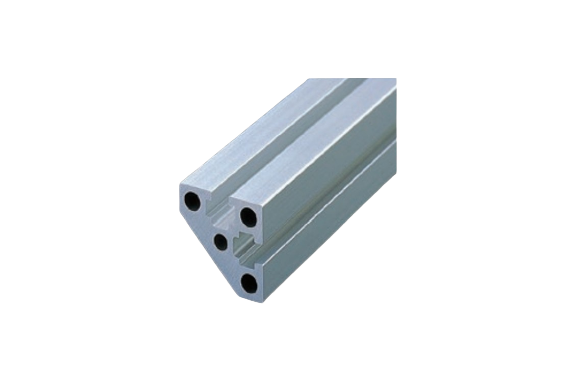

NIC Autotec AFSC-4040-8 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSC-4040-8

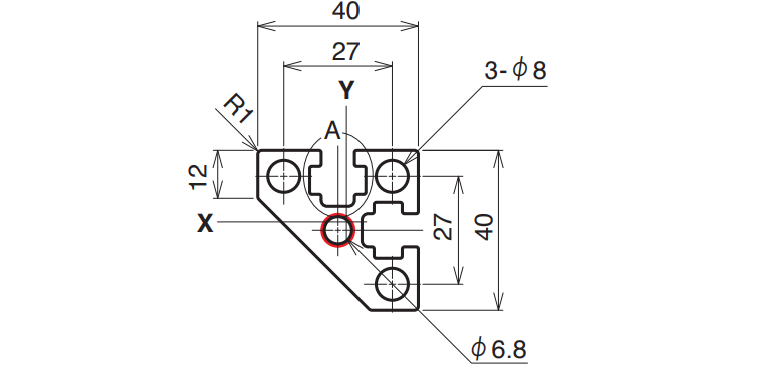

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 185 N/mm² | 709.7 mm² | 1.916 kg/m | Ix 9.02 × 10⁴ mm⁴ Iy 9.02 × 10⁴ mm⁴ |
