NIC AUTOTEC

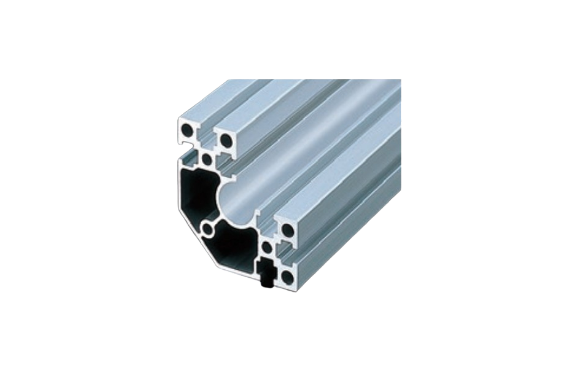

NIC Autotec AFSC-606030-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSC-606030-6

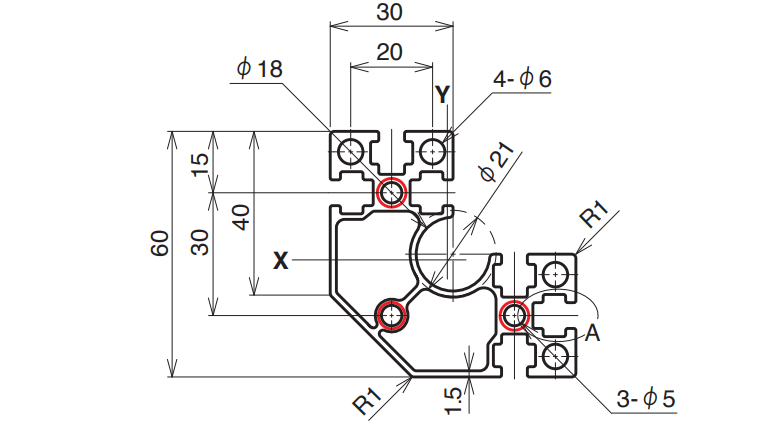

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 185 N/mm² | 760.5 mm² | 2.053 kg/m | Ix 26.5 × 10⁴ mm⁴ Iy 26.5 × 10⁴ mm⁴ |
