NIC AUTOTEC

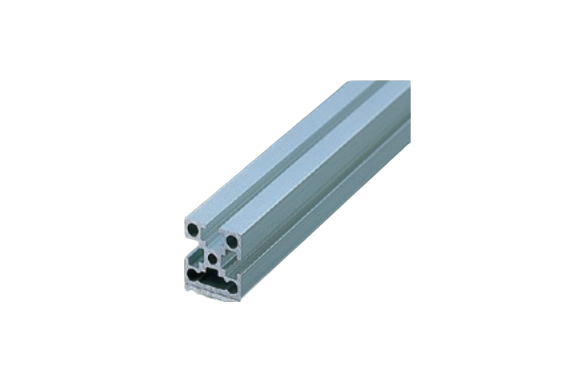

NIC Autotec AFSF-2020-4 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSF-2020-4

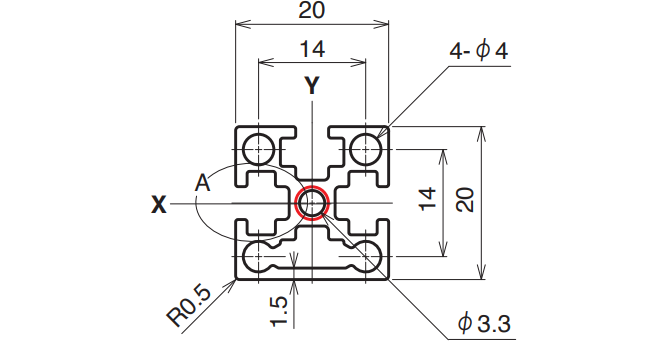

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 163.1 mm² | 0.440 kg/m | Ix 0.66 × 10⁴ mm⁴ Iy 0.62 × 10⁴ mm⁴ |
