NIC AUTOTEC

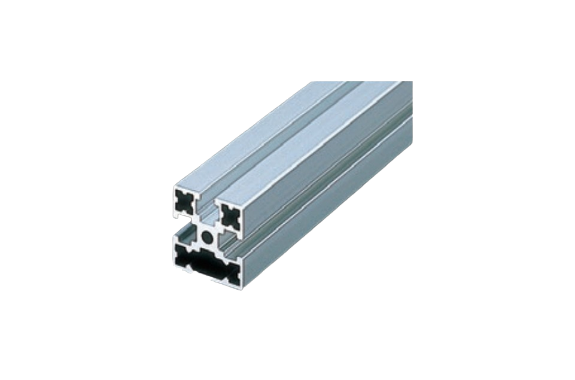

NIC Autotec AFSF-3030L-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSF-3030L-6

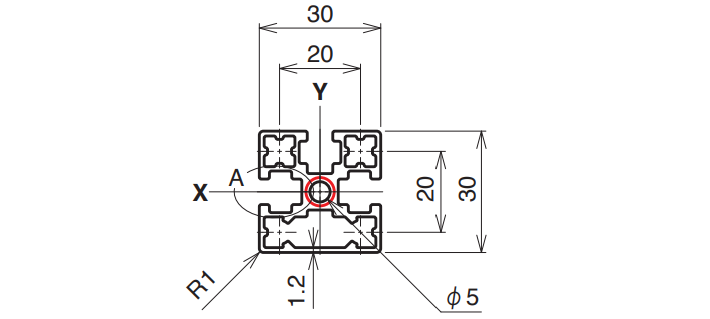

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 225 N/mm² | 308.2 mm² | 0.832 kg/m | Ix 2.57 × 10⁴ mm⁴ Iy 2.59 × 10⁴ mm⁴ |
