NIC AUTOTEC

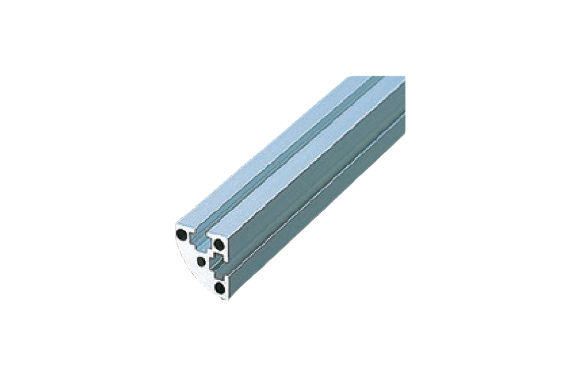

NIC Autotec AFSR-2020-4 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSR-2020-4

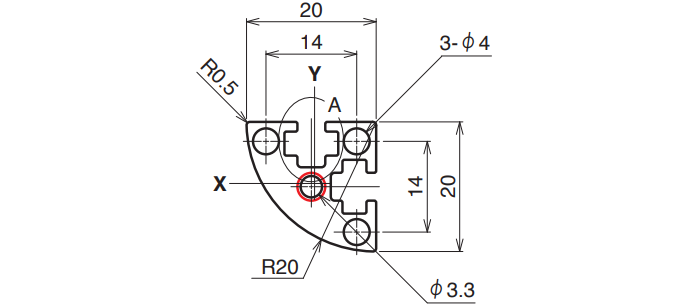

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 178.3 mm² | 0.481 kg/m | Ix 0.53 × 10⁴ mm⁴ Iy 0.53 × 10⁴ mm⁴ |
