NIC AUTOTEC

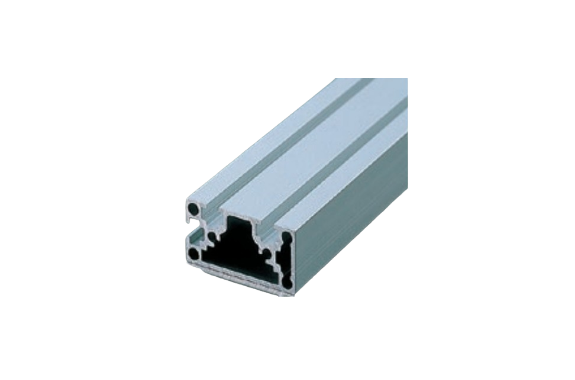

NIC Autotec AFST-2040-4 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFST-2040-4

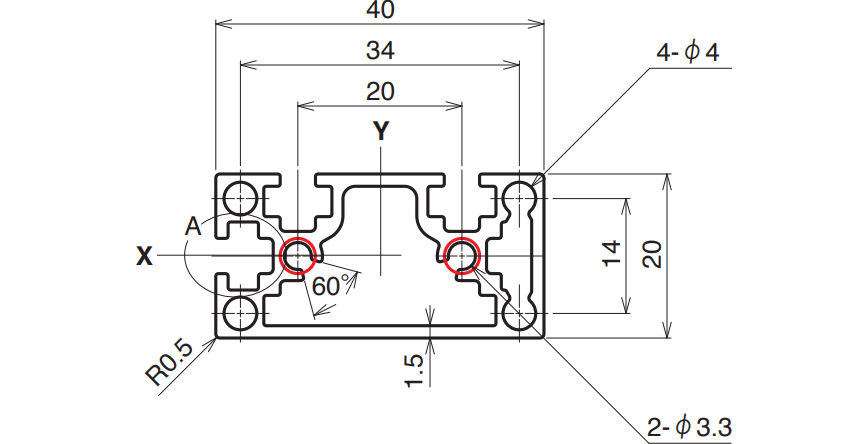

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 | 185 N/mm² | 264.7 mm² | 0.715 kg/m | Ix 1.21 × 10⁴ mm⁴ Iy 4.55 × 10⁴ mm⁴ |
