NIC AUTOTEC

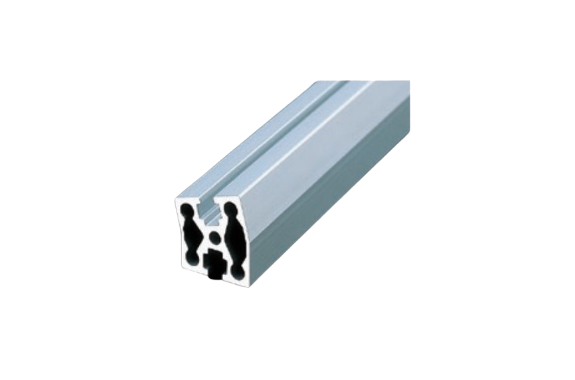

NIC Autotec AFSV-3015-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSV-3015-6
Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 225 N/mm² | 395.5 mm² | 1.068 kg/m | Ix 3.50 × 10⁴ mm⁴ Iy 3.54 × 10⁴ mm⁴ |
