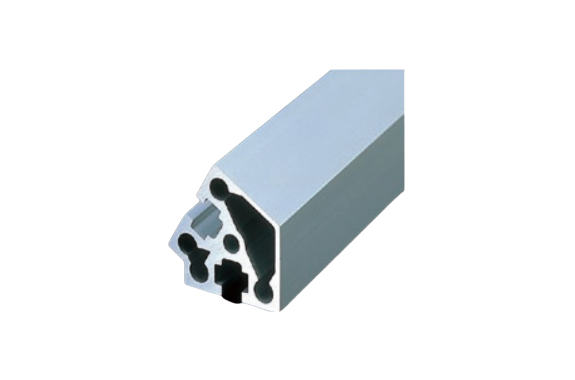

NIC Autotec AFSV-4060-8 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFSV-4060-8

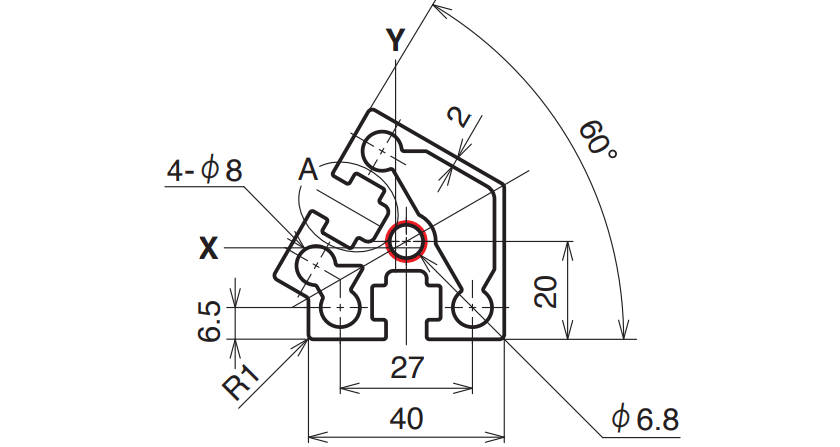

Dimensions
Specifications
| Length | Page length * 1 | Material | Tensile Fitness | Cross-sectional Area | Mass | Second Moment of Area |
|---|---|---|---|---|---|---|
| 6,000 mm | 15–4,000 mm | A6063S-T5 (205) | 185 N/mm² | 678.7 mm² | 1.832 kg/m | Ix 10.8 × 10⁴ mm⁴ Iy 10.3 × 10⁴ mm⁴ |
