NIC AUTOTEC
NIC Autotec AGBK Catch AG Series
Manufacturer: NIC Autotec, Inc.
Model: AGBK-MG06-1, AGBK-MG06-2, AGBK-UT06
Specifications
| Model | Material | Surface Treatment | Accessories |
|---|---|---|---|
| AGBK–MG06–1 | ①③ SPCC ② ABS resin | ①③ Trivalent chromate | Magnetic catch, base, mounting plate (1 each) M6 × 15 bolt (2 pieces) M4 square nut (2 pieces) M6 square nut (2 pieces) M4 × 10 hex socket countersunk bolt (2 pieces) M3 × 6 hex socket countersunk bolt (2 pieces) Nut holder (4 pieces) |
| AGBK–MG06–2 | ① SUS430 ② Polypropylene ③ A6N01S–T5 | ① Raw material ③ Anodized and clear coated | Magnetic catch, base, mounting plate (1 each) M3 × 8 bolt (2 pieces) M4 square nut (2 pieces) Nut holder (2 pieces) M4 rear–insertion nut (2 pieces) Rear–insertion nut holder (2 pieces) M4 × 10 hex socket countersunk bolt (2 pieces) M4 × 15 bolt (2 pieces) |
| AGBK–UT06 | SUS304 | Mirror finish | Latch (1 piece) Hex socket countersunk bolts M3 × 10 (4 pieces) Square nuts M3 (4 pieces) Nut holders (4 pieces) |

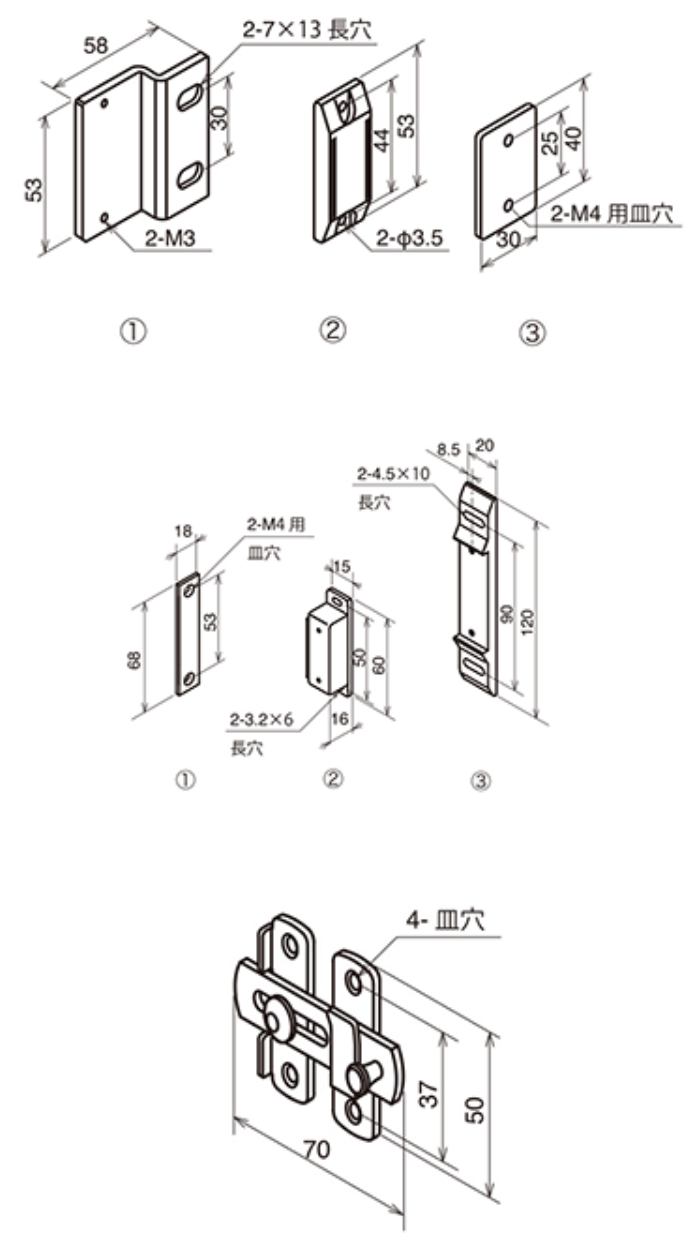

Dimensions
