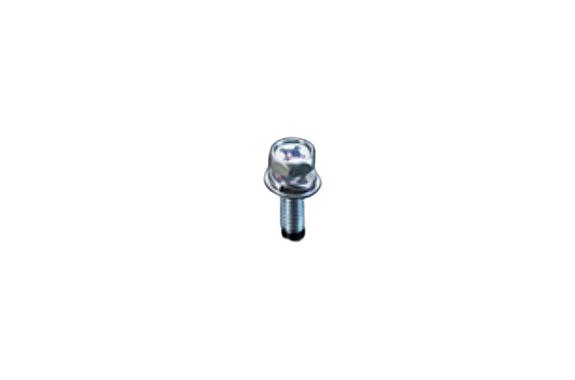

NIC Autotec APB-04 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: APB-04 Series
Specification
| Material | Surface treatment | Strength classification | color | size | Length (L) | mass | |
|---|---|---|---|---|---|---|---|
| APB-04-10 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 10mm | 1.9g |
| APB-04-10-P50 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 10mm | 95g (1.9 × 50) |
| APB-04-12 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 12mm | 2.1g |
| APB-04-12-P50 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 12mm | 105g (2.1 × 50) |
| APB-04-15 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 15mm | 2.3g |
| APB-04-15-P50 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 15mm | 115g (2.3 × 50) |
| APB-04-20 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 20mm | 2.7g |
| APB-04-20-P50 | SWCH | Trivalent chromate | Equivalent to 4.8 | Silver | M4 screw | 20mm | 135g (2.7 × 50) |

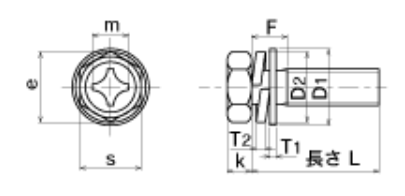

Dimension
