NIC AUTOTEC

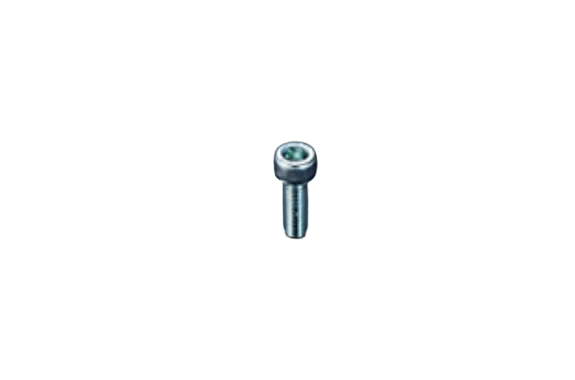

NIC Autotec CS-05 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: CS-05 Series
Specification
| Material | Surface treatment | Strength classification | color | size | Length (L) | mass | |
|---|---|---|---|---|---|---|---|
| CS-05-08 | SCM435 | Trivalent chromate | 10.9 | Silver | M5 screw | 8mm | 2.6g |
| CS-05-10 | SCM435 | — | 10.9 | Silver | M5 screw | 10mm | 2.8g |
| CS-05-12 | SCM435 | Trivalent chromate | 10.9 | Silver | M5 screw | 12mm | 3.1g |
| CS-05-15 | SCM435 | Trivalent chromate | 10.9 | Silver | M5 screw | 15mm | 3.5g |
| CS-05-18 | SCM435 | Trivalent chromate | 10.9 | Silver | M5 screw | 18mm | 3.8g |
| CS-05-20 | SCM435 | Trivalent chromate | 10.9 | Silver | M5 screw | 20mm | 4.1g |

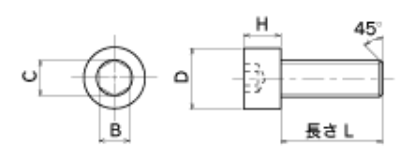

Dimension
