NIC AUTOTEC

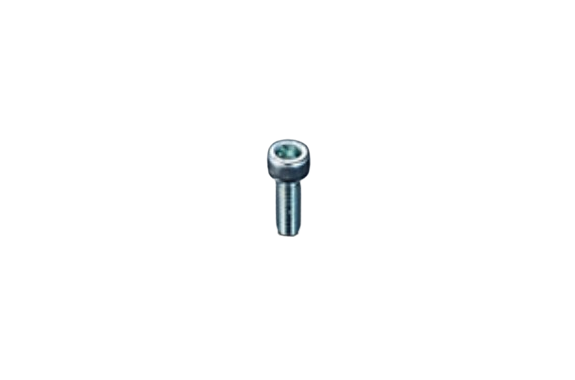

NIC Autotec CS-06 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: CS-06 Series
Specification
| Material | Surface treatment | Strength classification | color | size | Length (L) | mass | |
|---|---|---|---|---|---|---|---|
| CS-06-12 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 12mm | 4.8g |
| CS-06-15 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 15mm | 5.2g |
| CS-06-18 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 18mm | 5.8g |
| CS-06-20 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 20mm | 6.0g |
| CS-06-22 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 22mm | 6.5g |
| CS-06-25 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 25mm | 6.9g |
| CS-06-28 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 28mm | 7.5g |
| CS-06-30 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 30mm | 7.8g |
| CS-06-35 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 35mm | 9.1g |
| CS-06-40 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 40mm | 10.2g |

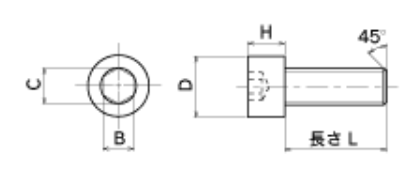

Dimension
