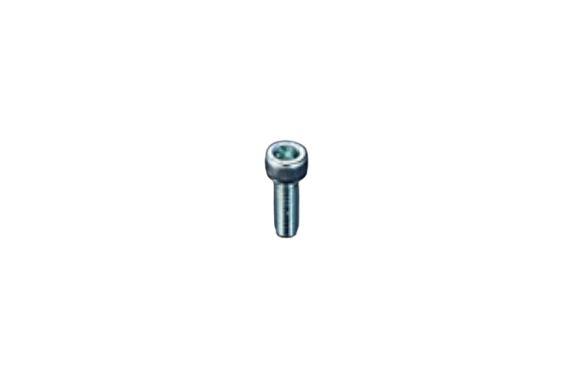

NIC Autotec CS-08 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: CS-08 Series
Specification
| Material | Surface treatment | Strength classification | color | size | Length (L) | mass | |
|---|---|---|---|---|---|---|---|
| CS-08-15 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 15mm | 11.0g |
| CS-08-18 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 18mm | 12.0g |
| CS-08-20 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 20mm | 12.5g |
| CS-08-22 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 22mm | 13.2g |
| CS-08-25 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 25mm | 14.2g |
| CS-08-28 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 28mm | 15.0g |
| CS-08-30 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 30mm | 15.7g |
| CS-08-35 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 35mm | 17.3g |
| CS-08-40 | SCM435 | Trivalent chromate | 10.9 | Silver | M8 screw | 40mm | 19.4g |

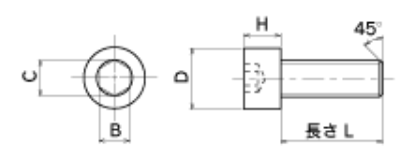

Dimension
