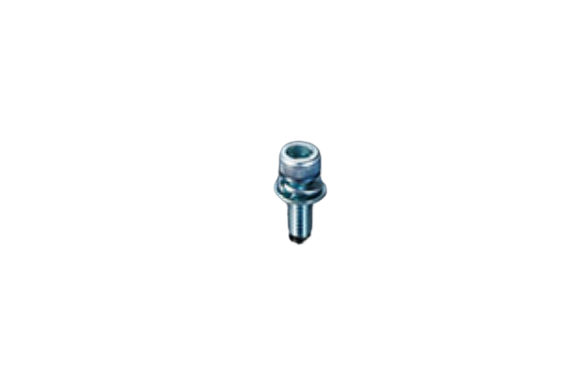

NIC Autotec CSW-06 Series Bolts And Nuts
Manufacturer: NIC Autotec, Inc.
Model: CSW-06 Series
Specification
| Material | Surface treatment | Strength classification | color | size | Length (L) | mass | |
|---|---|---|---|---|---|---|---|
| CSW-06-15 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 15mm | 6.8g |
| CSW-06-15-P50 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 15mm | 340g (6.8 × 50) |
| CSW-06-18 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 18mm | 7.5g |
| CSW-06-18-P50 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 18mm | 375g (7.5 × 50) |
| CSW-06-20 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 20mm | 7.8g |
| CSW-06-20-P50 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 20mm | 390g (7.8 × 50) |
| CSW-06-22 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 22mm | 8.2g |
| CSW-06-22-P50 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 22mm | 410g (8.2 × 50) |
| CSW-06-25 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 25mm | 8.5g |
| CSW-06-25-P50 | SCM435 | Trivalent chromate | 10.9 | Silver | M6 screw | 25mm | 425g (8.5 × 50) |

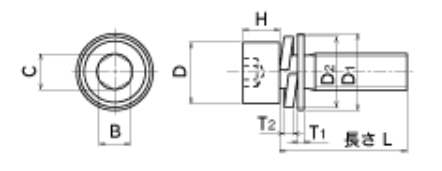

Dimension
