NIC AUTOTEC

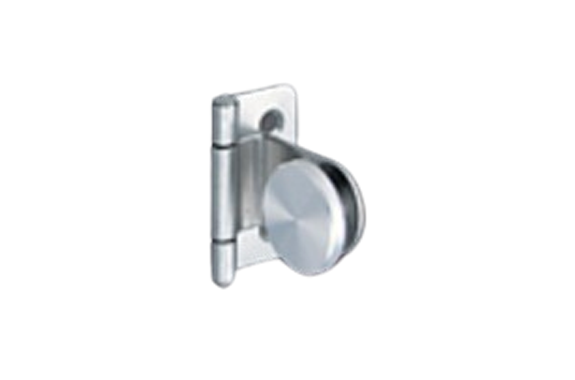

NIC Autotec DHS-3239 Accessories
Manufacturer: NIC Autotec, Inc.
Model: DHS-3239
Specifications
| Material | Surface Treatment | Mass | Allowable Load | Included Parts | Recommended Fastening Parts |
|---|---|---|---|---|---|
| ①②③ Stainless steel [SUS304] ④ Aluminum alloy [AL] ⑤ Nylon [PA] ⑥ Stainless steel [SUS304] | ①②③ Raw material ④ Spin finish ⑥ Polished barrel finish | 83 g | For door loads of 40 N or less | Phillips head truss screw M3 × 6 (stainless steel) | FCS–03–04 (3 pieces) CSW–05–15 (2 pieces) NSM–06–5 (2 pieces) NH–06–GR (2 pieces) |

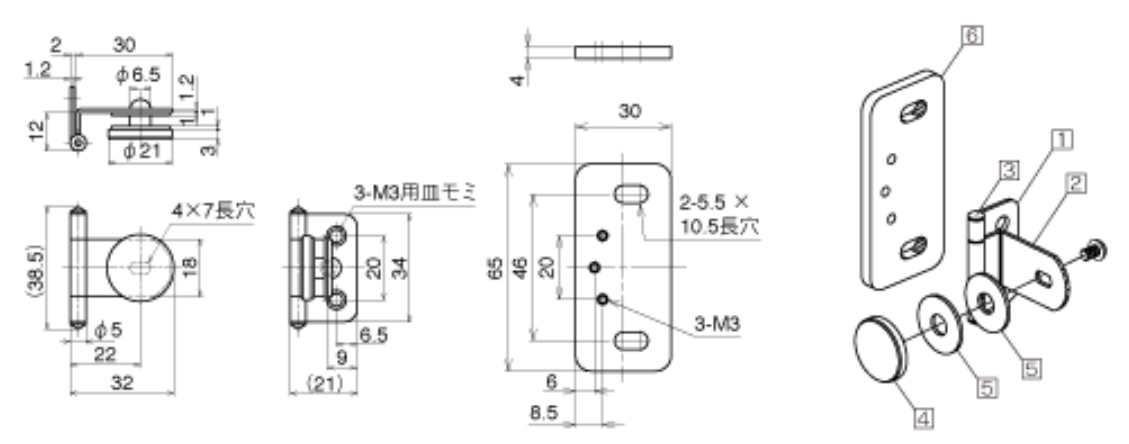

Dimension
