NIC AUTOTEC

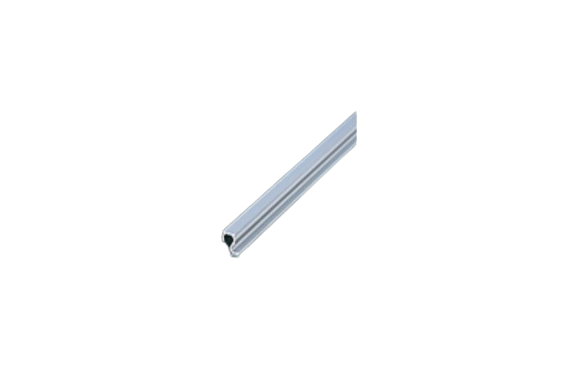

NIC Autotec FSA-06-6 Special Frame
Manufacturer: NIC Autotec, Inc.
Model: FSA-06-6
Specification
| Stock dimensions | 5000mm |
|---|---|
| Sales dimensions | 15–2000mm |
| cutting tolerance | ±0.3mm (≤2m) |
| Material | A6063S-T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating * |
| Tensile strength | 185 N/ mm² |
| cross-sectional area | 17.3mm² |
| mass | 0.047 kg/m |
| Second moment of area | Lx 0.013 × 10⁴ mm⁴ Ly 0.008 × 10⁴ mm⁴ |

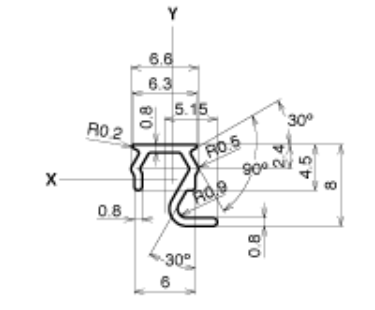

Dimension
